Top Mounted Range Rock Breakers
Hydraulic Hammer Performances
Beilite top mounted hydraulic rock breakers work directly on the material; as a result, they provide a strong vertical impact advantage, especially for breaking stone and quarry materials. Because these hammer breakers are installed at a higher position on the excavator, they allow for greater direct impact force. Therefore, they are especially effective for vertical breaking tasks.
Moreover, engineered for maximum power output and superior stability, Beilite top type rock breakers deliver exceptional performance. In addition, they perform reliably across mining operations, quarry material processing, foundation excavation, and heavy-duty demolition projects. Consequently, these applications benefit from precise vertical impact force and consistent breaking efficiency.
Top-type breakers are mounted directly above the tool centerline, providing better balance and control, especially for vertical demolition tasks such as breaking foundations, pillars, or deep trenching. This design provides enhanced energy transfer and greater efficiency in high-power applications with vertical alignment where the piston and cylinder are aligned straight with the excavator boom.
Key Design Advantages:
- Higher installation point delivering maximum direct impact power to target materials
- Centered gravity alignment providing exceptional balance and excavator stability during operation
- Straight-line energy transfer from piston through tool for optimal breaking efficiency
- Reduced mechanical stress on excavator arm through aligned force distribution
- Superior penetration depth for deep vertical breaking applications
- Enhanced structural integrity with reinforced upper mounting brackets
These hammer breakers offer a broader working space, enhancing maneuverability and versatility, while providing operators with better visibility. The higher mounting position ensures optimal downward force delivery, making top type rock breakers the most powerful choice for vertical applications requiring deep penetration and maximum breaking force.
Wide Application Range – BLT40 to BLT-280 Hammer Breaker
Beilite manufactures top mounted hydraulic breakers for excavators from 0.5 to 350 tons, providing the industry’s most comprehensive range:
- Mini Breakers BLT-40 to BLT-100 for tight urban spaces (0.5-14 ton excavators, backhoes, loaders, and other brands)
- Medium-duty Side Mounted Hammers BLT-125 to BLT-175 for general construction (18-50 ton excavators, backhoes, loaders, and other brands)
- Heavy-duty Breakers BLT-185 to BLT-280 for large-scale demolition (18 -50 ton excavators)
- Premium-heavy Breakers including award-winning BLTB-280 (120-350 ton excavators, backhoes, loaders, and other brands)
Contact Us at +966 55 123 45671 or Click the Button to Request a Quote Today!

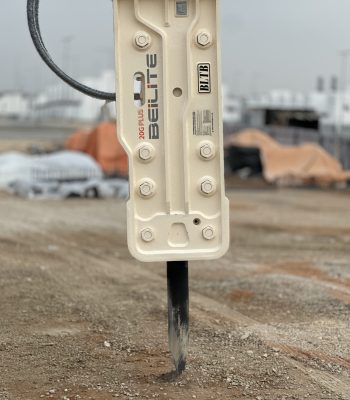

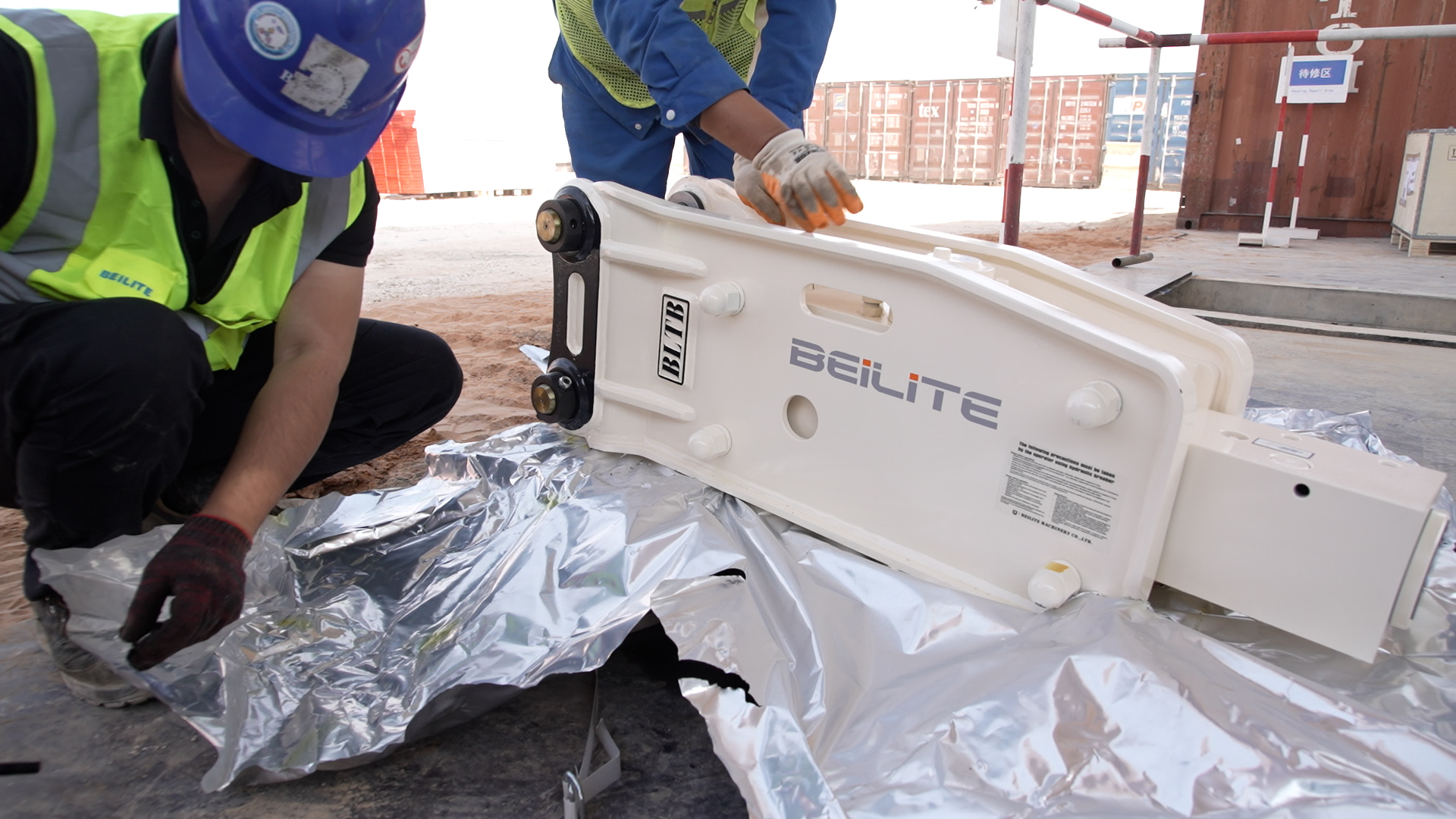

Beilite Top Mounted Hydraulic Hammer Breaker Models BLT-40 to BLT-100 for Mini Excavators
Beilite’s top mounted hydraulic hammer models BLT-40 to BLT-100 are purpose-built for mini excavators and compact carriers, delivering strong impact performance and reliable operation for light to medium-duty breaking tasks. Designed for top mount installation, these hydraulic breakers ensure optimal energy transfer, precise striking, and enhanced control, making them ideal for applications such as urban demolition, trenching, landscaping, utility construction, and road maintenance.
Suitable for 0.5 to 14-ton carriers—including excavators, crawler excavators, wheeled excavators, backhoe loaders, skid steer loaders, compact track loaders, wheel loaders, tractors, and cranes with power packs—the BLT-40 to BLT-100 series combines compact design, durable construction, and low maintenance requirements. Built with high-quality materials and precision-engineered components, these top mounted mini excavator hydraulic hammers deliver smooth performance, long service life, and dependable productivity, making them an efficient and cost-effective solution for contractors and equipment operators.
Beilite Models BLT-40 to BLT-100 Compatibility With Carrier's
Working Oil Flow: 15l/min to 110l/min
Impact Frequency: 800bpm to 700bpm
Working Pressure: 90bar to 170bar
Chisel Diameter: 40mm to 100mm
| Models | Carrier Tonnage Match with Mini BLT-40 to BLT-100 Breakers |
|---|---|
| Excavators | 0.8~14 ton |
| Skid Steer Loaders | 0.8~14 ton |
| Backhoe Loaders | 0.8~14 ton |
| Demolition Robot | 0.8~14 ton |
| Pedestal Boom | 0.8~14 ton |
| Knuckle Boom Crane | - |
| Refractory Removal Machine | 4.5~14 ton |
| Tractors | 0.8~14 ton |
| Scaling Machine | 0.8~6 ton |
| BREAKER MODELS | CHISEL DIAMETER (mm) | SUITABLE EXCAVATOR (TONS) | WORKING FLOW (L/min) | WORKING PRESSURE (bar) | IMPACT FREQUENCY (bpm) |
|---|---|---|---|---|---|
| BLT-40 | 40 | 0.5 – 1.2 | 15 – 30 | 90 – 120 | 800 – 1400 |
| BLT-45 | 45 | 0.8 – 1.5 | 20 – 40 | 90 – 120 | 700 – 1200 |
| BLT-53 | 53 | 1.5 – 3.5 | 20 – 50 | 90 – 120 | 600 – 1100 |
| BLT-60 | 60 | 3 – 5 | 30 – 60 | 100 – 130 | 500 – 1000 |
| BLT-70 | 70 | 4.5 – 6 | 40 – 70 | 110 – 140 | 500 – 900 |
| BLT-75 | 75 | 6 – 8.5 | 50 – 90 | 120 – 150 | 400 – 800 |
| BLT-85 | 85 | 7 – 11 | 60 – 100 | 130 – 160 | 400 – 800 |
| BLT-100 | 100 | 10 – 14 | 80 – 110 | 150 – 170 | 350 – 700 |
Contact Us at +966 55 123 45671 or Click the Button to Request a Quote Today!

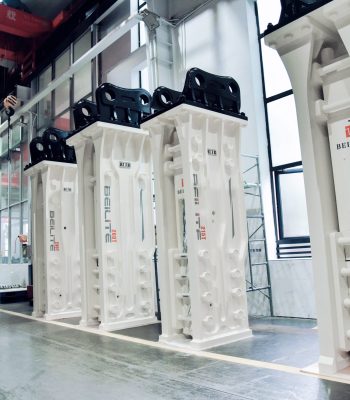

Top Mounted Hydraulic Hammer Models BLT-125 to BLT-175 for Medium 18~45 ton Excavators
Beilite top mounted hydraulic hammer models BLT-125 to BLT-175 are engineered for 18–45 ton medium excavators and carriers, providing powerful impact performance with smooth energy transmission and precise control. The top mounted design delivers excellent structural stability and optimal hydraulic alignment, making these breakers ideal for reinforced concrete demolition, trenching, quarrying, road construction, and general heavy-duty breaking tasks.
Compatible with a variety of machines—including crawler excavators, wheeled excavators, backhoe loaders, wheel loaders, and cranes with power packs—the BLT-125 to BLT-175 series combines robust construction, advanced hydraulic systems, and vibration-reduction technology to improve reliability and extend service life. These medium hydraulic hammers feature stable operating performance, reduced maintenance needs, and high productivity, offering contractors and equipment fleets a dependable, cost-effective solution for demanding job sites.
Beilite Models BLT-125 to BLT-175 Compatibility With Carrier's
Working Oil Flow: 90l/min to 270l/min
Impact Frequency: 350bpm to 200bpm
Working Pressure: 90bar to 250bar
Chisel Diameter: 125mm to 175mm
| Models | Carrier Tonnage Match with Mini BLT-125 to BLT-175 Breakers |
|---|---|
| Excavators | 18~45 ton |
| Skid Steer Loaders | - |
| Backhoe Loaders | - |
| Demolition Robot | 14~18 ton |
| Pedestal Boom | 18~45 ton |
| Knuckle Boom Crane | - |
| Refractory Removal Machine | 18~24 ton |
| Tractors | - |
| Scaling Machine | - |
| BREAKER MODELS | CHISEL DIAMETER (mm) | SUITABLE EXCAVATOR (TONS) | WORKING FLOW (L/min) | WORKING PRESSURE (bar) | IMPACT FREQUENCY (bpm) |
|---|---|---|---|---|---|
| BLT-125 | 125 | 14 – 18 | 90 – 120 | 150 – 170 | 350 – 650 |
| BLT-135 | 135 | 18 – 22 | 100 – 150 | 160 – 180 | 350 – 500 |
| BLT-140 | 140 | 20 – 24 | 120 – 180 | 160 – 180 | 350 – 500 |
| BLT-150 | 150 | 24 – 27 | 130 – 190 | 180 – 200 | 200 – 300 |
| BLT-155 | 155 | 27 – 33 | 180 – 240 | 200 – 220 | 200 – 300 |
Ready to find out more?
Contact Us at +966 55 123 45671 or Click the Button to Request a Quote Today!

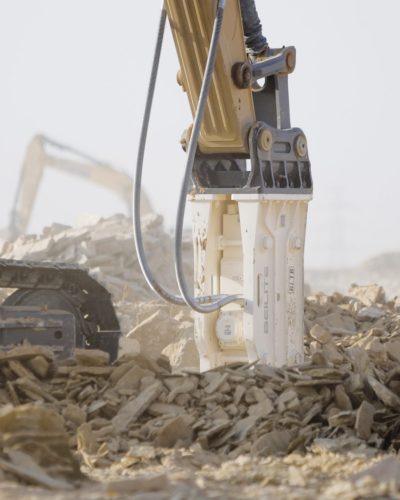

Top Mounted Hydraulic Hammer Models BLT-195 to BLT-280 for Heavy-Duty 50–350 Ton Excavators
Beilite Models BLT-185 to BLT-280 Compatibility With Carrier's
Working Oil Flow: 240l/min to 650 l/min
Impact Frequency: 100bpm to 90 bpm
Working Pressure: 240bar to 350 bar
Chisel Diameter: 190mm to 280mm
Beilite top mounted hydraulic hammer models BLT-195 to BLT-280 are purpose-built for heavy-duty excavators and carriers in the 50–350 ton range. As a result, they deliver exceptional breaking power, structural robustness, and hydraulic efficiency for the most demanding applications. Moreover, the top mounted configuration ensures superior energy transfer, precise impact control, and enhanced stability, even under continuous operation on large-scale construction, mining, quarrying, and demolition projects.
Furthermore, the BLT-195 to BLT-280 series is designed with reinforced internal components, while also incorporating advanced hydraulic flow optimization and durable materials. Consequently, these heavy-duty hammer breakers provide maximum impact force, reduced vibration transmission, and extended service life. At the same time, they are engineered to protect the carrier machine. In addition, they maintain high productivity, low maintenance costs, and reliable performance in tough working conditions.
Finally, because they are compatible with a wide range of large crawler excavators, wheeled excavators, and cranes equipped with power packs, Beilite’s top mounted heavy hydraulic hammers offer an efficient and cost-effective solution. Therefore, professional operators and heavy equipment fleets can confidently tackle challenging rock, concrete, and structural breaking tasks.
| Models | Carrier Tonnage Match with Mini BLT-185 to BLT-280 Breakers |
|---|---|
| Excavators | 50~350 ton |
| Skid Steer Loaders | - |
| Backhoe Loaders | - |
| Demolition Robot | - |
| Pedestal Boom | 50~350 ton |
| Knuckle Boom Crane | - |
| Refractory Removal Machine | - |
| Tractors | - |
| Scaling Machine | - |
| BREAKER MODELS | CHISEL DIAMETER (mm) | SUITABLE EXCAVATOR (TONS) | WORKING FLOW (L/min) | WORKING PRESSURE (bar) | IMPACT FREQUENCY (bpm) |
|---|---|---|---|---|---|
| BLT-190 | 190 | 45 – 55 | 240 – 290 | 250 – 270 | 100 – 140 |
| BLT-195 | 195 | 50 – 60 | 260 – 310 | 260 – 280 | 100 – 140 |
| BLT-200 | 200 | 50 – 65 | 280 – 330 | 280 – 300 | 100 – 130 |
| BLT-205 | 205 | 55 – 75 | 320 – 380 | 280 – 300 | 100 – 130 |
| BLT-210 | 210 | 60 – 90 | 340 – 400 | 280 – 300 | 90 – 120 |
| BLT-215 | 215 | 65 – 95 | 350 – 410 | 280 – 300 | 90 – 120 |
| BLT-220 | 220 | 70 – 100 | 370 – 430 | 300 – 330 | 80 – 110 |
| BLT-230 | 230 | 75 – 110 | 400 – 460 | 300 – 330 | 80 – 110 |
| BLT-235 | 235 | 75 – 120 | 420 – 480 | 300 – 330 | 80 – 110 |
| BLT-255 | 255 | 90 – 130 | 450 – 550 | 300 – 330 | 70 – 100 |
| BLT-260 | 260 | 90 – 160 | 490 – 590 | 300 – 330 | 70 – 100 |
| BLT-280 | 280 | 100 – 350 | 550 – 650 | 300 – 330 | 60 – 90 |
Contact Us at +966 50 019 8571 or Click the Button to Request a Quote Today!
The Right Tools for the Job
Whether you need a hydraulic breaker for a single mini excavator or a fleet of heavy-duty excavators, the experts at Beilite (BLT) Hydraulic Hammers ensure you get the right tools for the job. Matching your carrier’s operating weight with the correct hydraulic hammer attachment is critical for seamless operation and long-term part durability. Our precision-engineered rock breakers are designed for maximum efficiency in tight areas, preventing costly damage to your machine by ensuring a perfect hydraulic match. Explore our selection today to find the ideal mini hydraulic hammer for sale that delivers the performance your project demands.
Why Choose Beilite Top Mounted Hydraulic Breakers?
✓ Global Leadership – Over 20 thousand market shares for heavy-duty hydraulic breakers worldwide
✓ Award-Winning Innovation – 2025 World Demolition Award for BLTB-280 breaker
✓ Maximum Vertical Power – Superior downward impact force for deep penetration
✓ Enhanced Stability – Centered mounting reduces excavator stress and tip-over risk
✓ Proven Reliability – Trusted in 100+ countries across all continents
✓ Extended Service Life – A longer lifespan (up to 15,000 hours depending on your usage) than competing products
✓ Lower Operating Costs – 40% reduction in maintenance expenses versus other brands
✓ Superior Visibility – Higher mounting position improves operator sightlines
✓ Mining Industry Preferred – First choice for quarry and mine operators globally
✓ Better Balance – Optimal weight distribution prevents excavator instability
✓ Pioneering Technology – Developer of China’s first heavy-duty hydraulic breakers
✓ Industry Standard Contributor – Participated in drafting GB/T32799-2016 national standard
✓ Comprehensive Support – Expert technical team with 20+ years average experience
Compatible Excavator Brands & Models
Beilite top mounted hydraulic breakers are engineered for compatibility with all major excavator manufacturers:
Premium Brands:
Caterpillar (CAT 303-390 series, 336, 349, 365, 374, 390)
Komatsu (PC50-PC800 series, PC200, PC350, PC490, PC600)
Hitachi/John Deere (ZX series, 200, 350, 470, 690, 870)
Volvo (EC series, EC140-EC950)
Liebherr (R series, R914-R984)
Doosan/Develon (DX series, DX140-DX800)
Asian Manufacturers:
Hyundai (HX/R series, R210-R520)
Kobelco (SK series, SK135-SK850)
XCMG (XE series, all models)
Sany (SY series, 135-750)
LiuGong (CLG series, all sizes)
SDLG (LG series excavators)
Compact & Mini Excavators:
Bobcat (E series mini excavators)
Kubota (KX series, U series)
Yanmar (ViO series, SV series)
Takeuchi (TB series)
JCB (8000 series mini excavators)
